On-A-Roll® Lifter Compact-2

800661 MFG #: 0
  • Flip stops on the forks to easily load the roll and ensure materials are secured for transport.
  • Foot pump allows for smooth, effortless lifting within minutes.
  • 360° heavy-duty rotating (and locking) casters enable maneuvering through standard doors and narrow passages.
  • 2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.

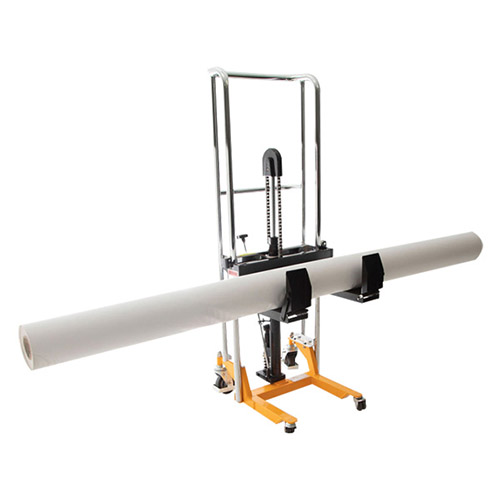

Designed specifically for sign makers and other business with the need to handle heavy media rolls and tight on space. The new flip stops on the forks allow the operator to easily load the roll and keep the roll in place during transport. It enables users to quickly and effortlessly lift media as heavy as 330 lbs (150 kg) as wide as 71” (180 cm) and lift height up to 49” (125 cm). The Compact-2 design allows users to maneuver around tight corners and through narrow passages.

  • Bottom Fork Clearance
  • Front Swivel Casters
  • Lift Height
  • Max. Roll Diameter
  • Max. Roll Width
  • Rear Swivel Casters
  • Roll Weight Capacity
  • Weight
3” (7.5 cm)
2″ (5 cm)
49″ H (125 cm)
12″ (30.5 cm)
71″ (180 cm)
5″ (12.5 cm)
330 lbs (150 kg)
175 lbs (80 kg)
